interested in a 50D initial port of Magic Lantern ?

  • 1148 Replies
  • 332909 Views
*

Offline ilguercio

  • ****
  • 317
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #180 on: 11 / September / 2011, 22:26:25 »
Advertisements
I've made a couple pics of the 50D's internals.
Here's the motherboard:





« Last Edit: 11 / September / 2011, 23:28:47 by ilguercio »
Logged
*

Offline mp1405

  • *
  • 9
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #181 on: 12 / September / 2011, 06:00:37 »
Hi all,

in this moment i am on the island of teneriffa without my 50D. I was looking for a possibility to make timelapse pictures for my panasonic tz10 and found infos about our ML project.

Great news, great improvements,great teamwork...

I am really interrested in testing your software. As i undestand i need the .fir file to set the bootflag and the bin file with the 50D code. Please can anyone share this files because on the official download side  there is only a hint "50D comming soon"

Cheers



Logged
*

Offline ilguercio

  • ****
  • 317
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #182 on: 13 / September / 2011, 07:52:07 »
I've googled any chip onto the motherboard and none of them seems to be an audio chip.
But...i've ripped a wire that connects to the lower piece of the board (tripod screw zone) and the camera is still working fine. I wonder what that is, hoping to repair it soon.

Logged
*

Offline arm.indiana

  • ***
  • 105
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #183 on: 13 / September / 2011, 12:55:15 »
Very useful Ilguercio,
I have identified some chips here: http://magiclantern.wikia.com/wiki/Datasheets
like an FPGA, and T19A that be might updatable, so maybe we can learn their code....

Indy
Logged
*

Offline arm.indiana

  • ***
  • 105
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #184 on: 13 / September / 2011, 12:58:14 »
you see the connector on Digic4 side, bottom right ? was it connected ?
« Last Edit: 13 / September / 2011, 13:01:32 by arm.indiana »
Logged
*

Offline ilguercio

  • ****
  • 317
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #185 on: 13 / September / 2011, 16:08:50 »
Yes indy, it is connected to a cable that is going into the lcd and thumb wheel body piece, i'll show you a picture of it.
Those connectors plug into right bottom and left bottom (white one) .
What about that wire that broke up? ( i circled it in my previous post) .

« Last Edit: 13 / September / 2011, 16:12:28 by ilguercio »
Logged
*

Offline smeangol

  • **
  • 50
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #186 on: 14 / September / 2011, 07:45:34 »
isnt this a speaker on the last picture?
Logged
*

Offline ilguercio

  • ****
  • 317
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #187 on: 14 / September / 2011, 08:03:04 »
Thanks for the hint. I photographed it because i tought it was something audio related too but couldnt understand what's a speaker for in that place.
Is there a speaker on 550D or 60D? Where is it?
Logged
*

Offline a1ex

  • *****
  • 671
  • ML dev
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #188 on: 14 / September / 2011, 08:16:32 »
The speaker is used for focus beep and for movie playback. I believe it should go through the same audio chip which records audio.

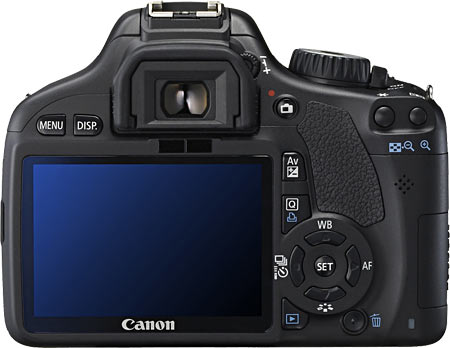

In 550D it's just under the zoom buttons (you can easily cover it to the finger).
http://www.photoxels.com/images/Canon/eos-t2i-550d/canon-t2i-550d-ba-450.jpg

On 60D I don't remember where it is (it's a bit harder to cover with the finger).
Logged
*

Offline ilguercio

  • ****
  • 317
Re: interested in a 50D initial port of Magic Lantern ?
« Reply #189 on: 14 / September / 2011, 08:25:38 »
Are you able to sort of put an audio file inside the autoexec so we can see if it can be played? :)
Logged
